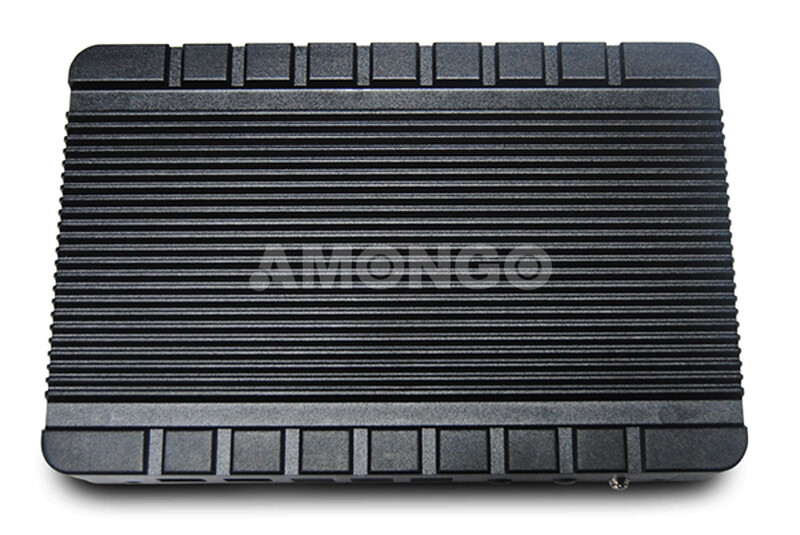

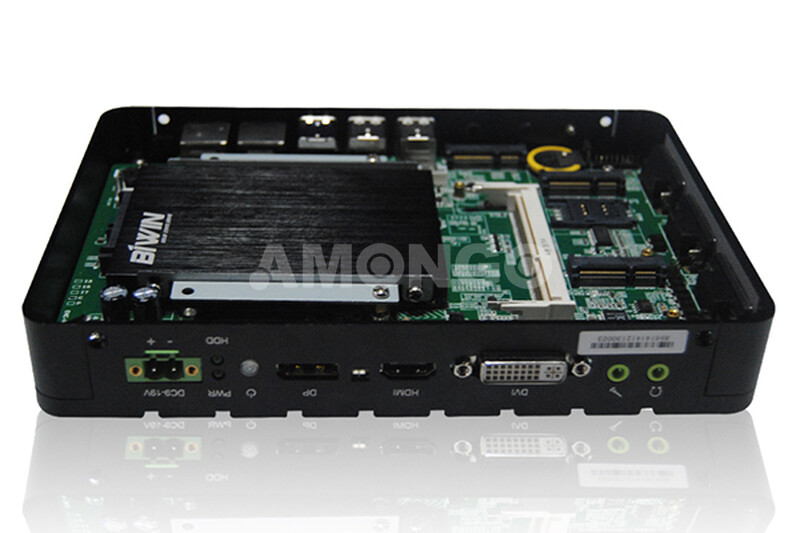

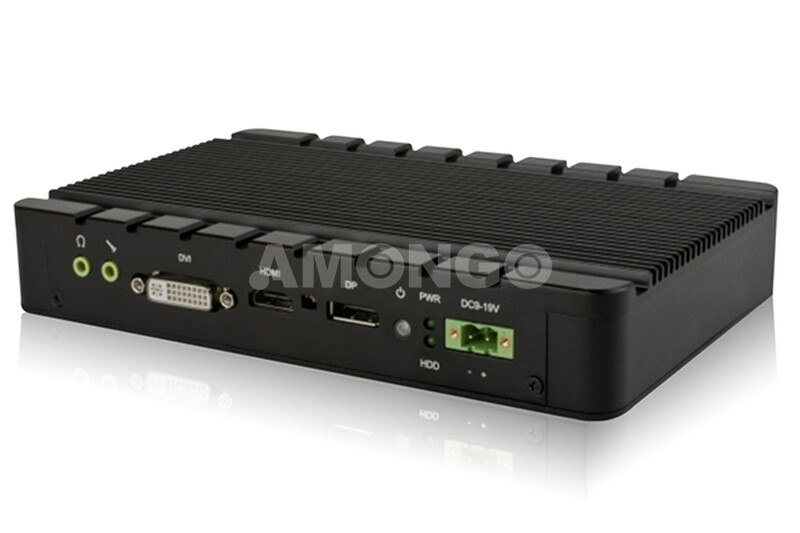

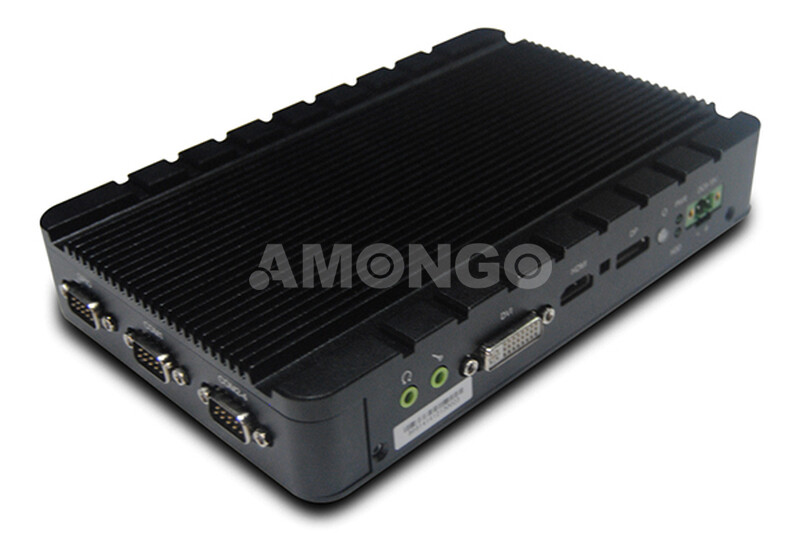

PC Ultra Slim Fanless Box

Model

AMG-B886

CPU

Intel® Atom™ Cedar Trail processor N2600 / 2800

FSB

800 / 1066MHz

Chipset

CG82NM10

BIOS

System BIOS: SPI BIOS

Architecture

DDR3L-800MT/s and 1066MT/s

Capacity

Onboard 2GB

Graphic Controller

Intel®3600 series graphic media accelerator

LCD/DVI/LVDS

N/A

HDMI

Support HDMI 1.3, type A, 19pin

Max. Resolution: 2560 * 1600

VGA

1*DB15

Max. Resolution: 1920 * 1200

Dual Display

VGA+HDMI

Controller

LAN 1: Intel 82583 GbE Lan

LAN 2: N/A

Realtek HD ALC662 audio decoder(LINEOUT+ Mic )

WINBOND 83627DHG

Watch Dog Timer

Timer 1 - 255 sec./min., support system reset

Smart Fan

Fan-less

USB

6* USB 2.0/1.1 compatible

Serial Port

1* RS232

Mini-PCIe

1* Mini-PCIe  socket, support WIFI/3G wireless network

UIM Socket

1* standard SIM card socket

SATA

1* SATAII

Power Type

Wide range voltage input: DC12-24V

Power Consumption

Typical power: 12W

Operating Environment

-20°C ~ 60°C

Storage Environment

-40°C ~ 85°C

Operating Humidity

10% ~ 90% relative humidity, non-condensing

Storage Humidity

10% ~ 90% relative humidity, non-condensing

Dimensions

145mm * 135mm * 32mm (L*W*H)

Weight

1.28Kg

Regulatory Compliance

FCC, CE, RoHS compliant
